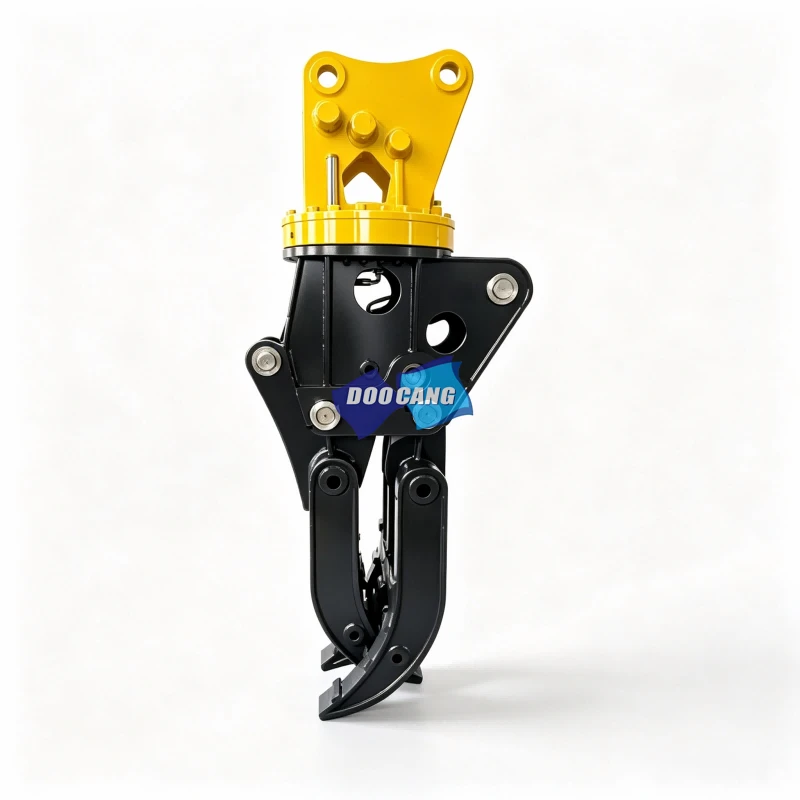

Hydraulic Log Grab
Products Overview
The DOOCANG excavator log grab is a hydraulic attachment, mainly used for the transportation, movement, loading and sorting of wood, logs, stones, rocks and other large-scale waste materials. It is suitable for excavators with a capacity of 3 to 40 tons and is compatible with all mainstream brands and models.

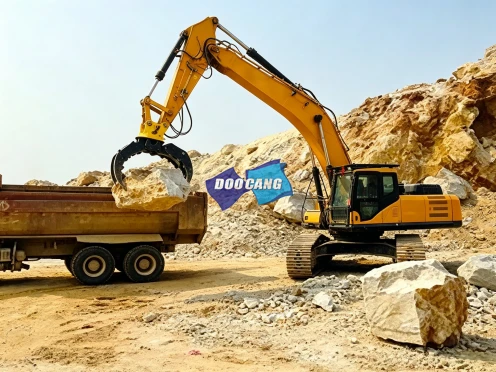

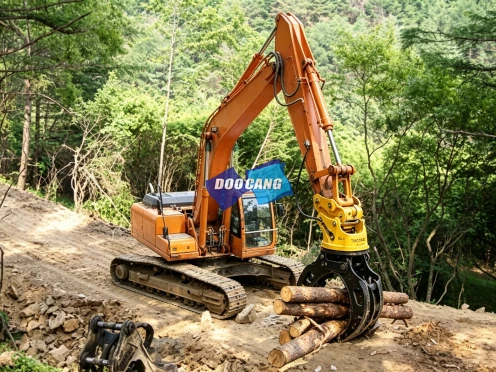

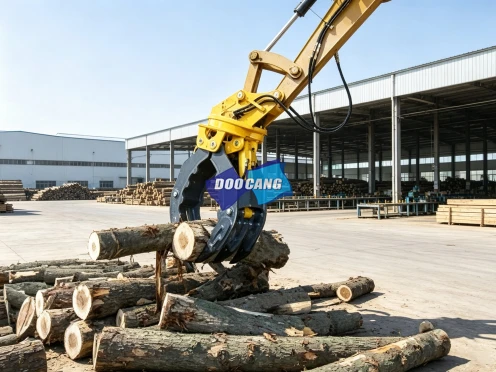

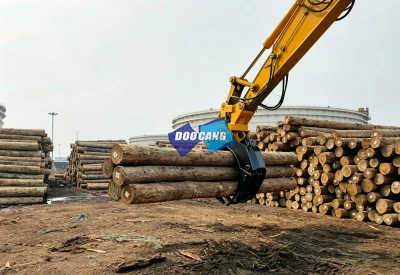

Application scope
The differences between mechanical grabbers and hydraulic grabbers

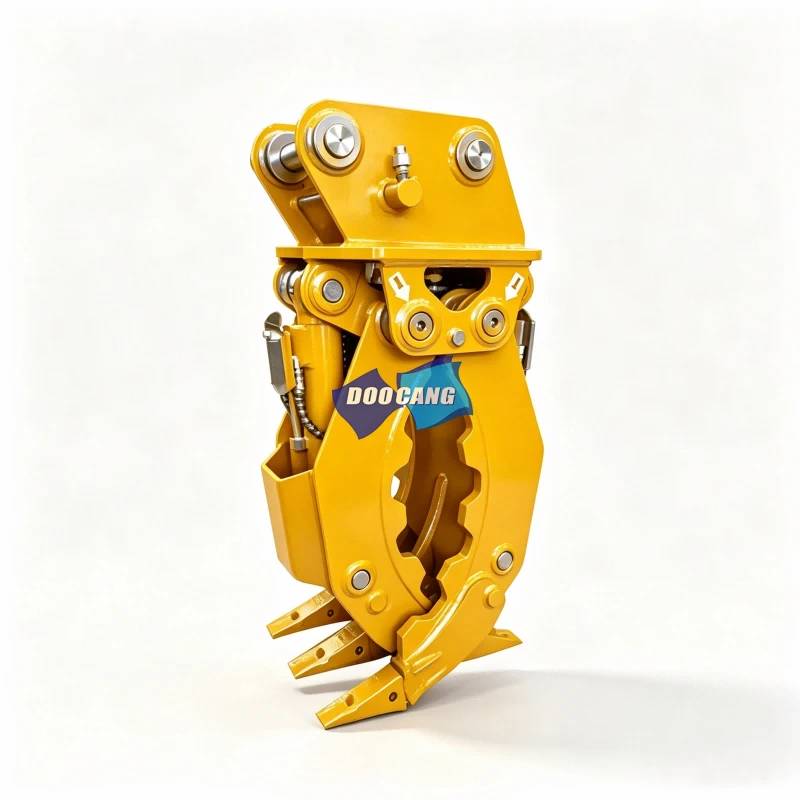

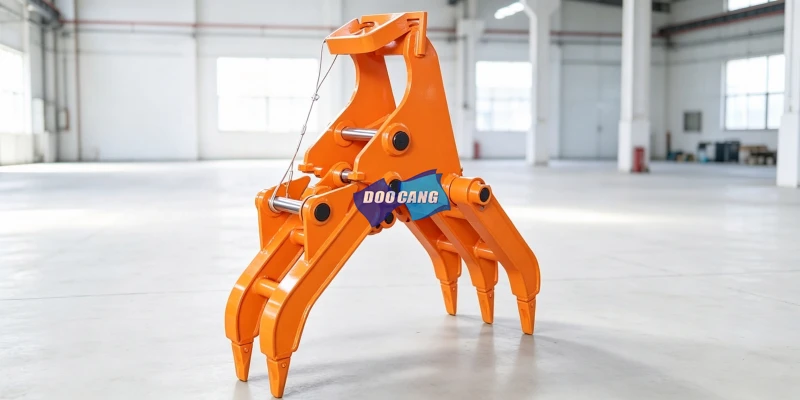

Mechanical Grab
The mechanical grab operates using the grab cylinder. When the cylinder is opened, the grab teeth expand. Compared to hydraulic grabs, mechanical grabs require less maintenance. Their boom is connected to a rigid arm, which can lift heavy objects, move waste materials, and is highly suitable for heavy-duty operations.
Application scenarios: Heavy lifting, waste transportation, and routine material handling that does not require frequent precise positioning.

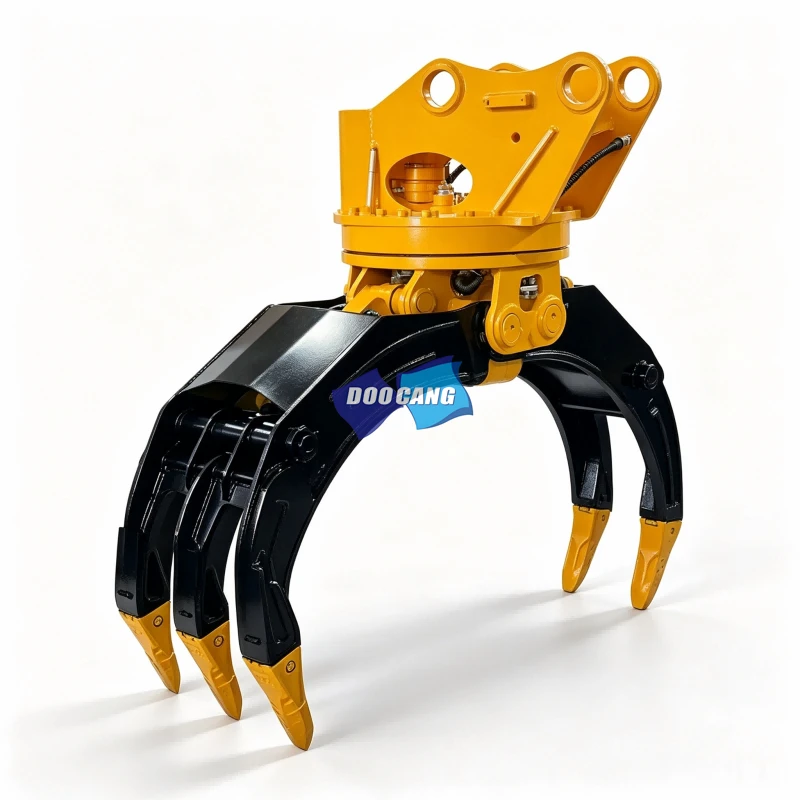

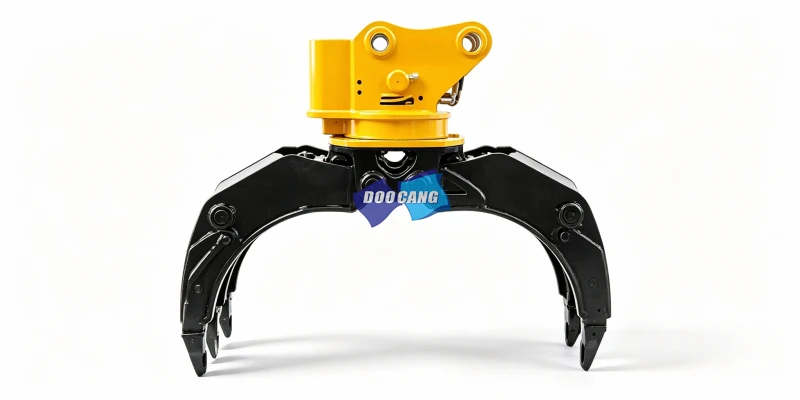

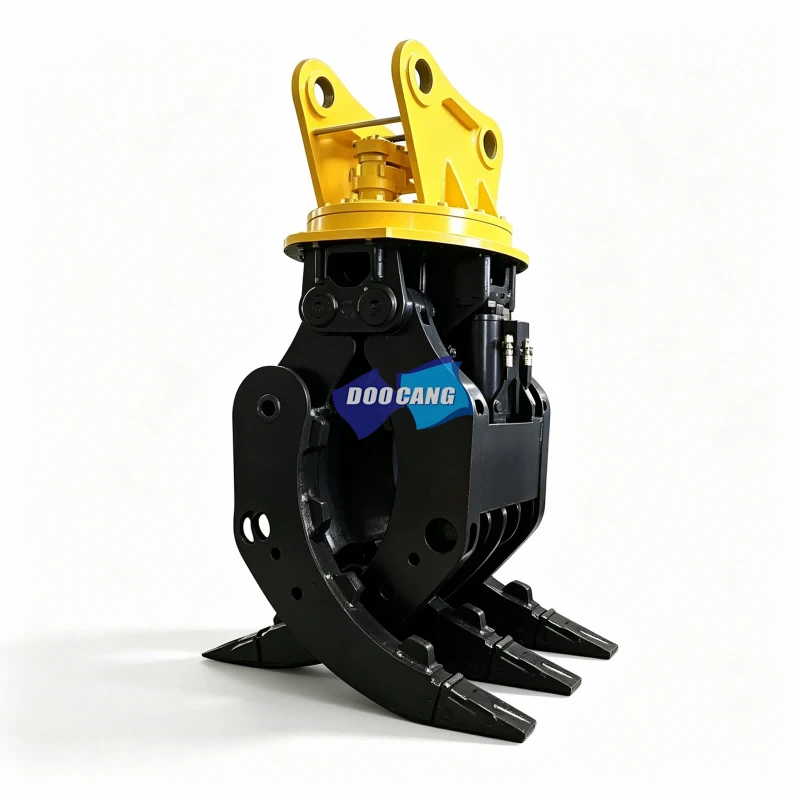

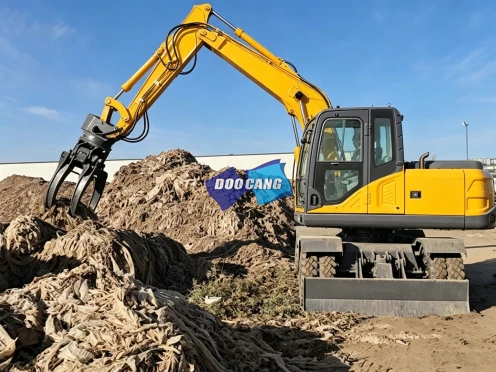

Hydraulic Grab
The hydraulic grab is powered entirely by the excavator. The hydraulic circuit of the machine is connected to the grab jaw, driving the grab claws to move synchronously. The hydraulic grab moves more efficiently and precisely. Some models can rotate 180° or even 360°, giving you complete operational freedom at the work site.
Technical Specification
|
Item/Model |
Suitable excavator |
Opening with jaw |
Working pressure |
Set up pressure |
Working flow |
Cylinder volume |
Weight |
|
UNIT |
Ton |
mm |
bar |
bar |
lpm |
L |
kg |
|
DC-04 |
5-7 |
1400 |
120-160 |
180 |
50-100 |
4.5*2 |
420 |
|
DC-06 |
10-15 |
1600 |
150-170 |
190 |
90-110 |
8*2 |
680 |
|
DC-08 |
20-30 |
2100 |
160-180 |
200 |
100-140 |
9.7*2 |
1560 |
