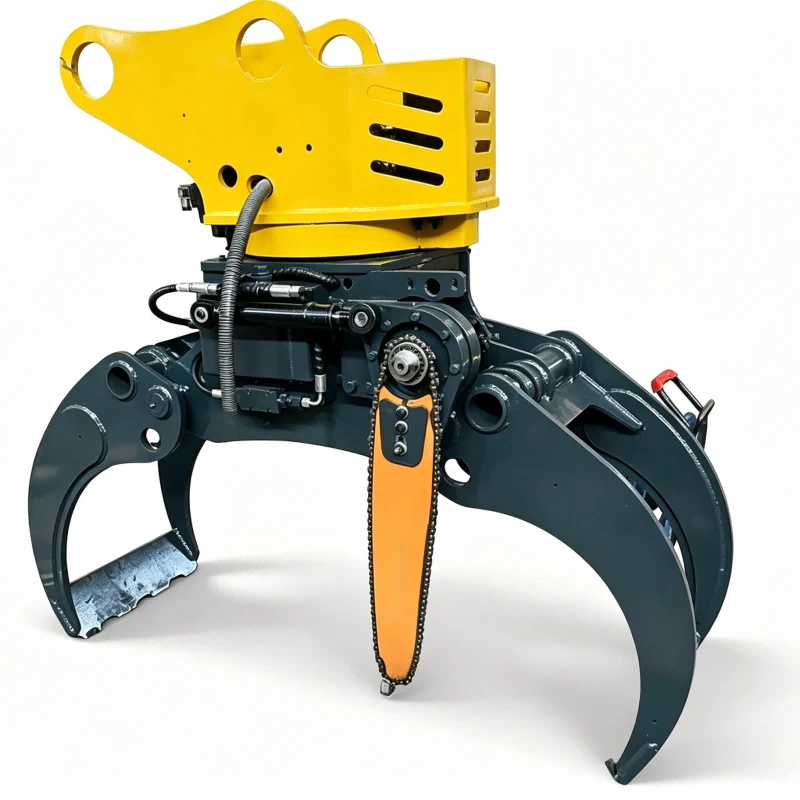

Multifunctional Grapple Saw

Products Overview The Multifunctional Grapple Saw is an attachment that integrates cutting and clamping functions. It is mainly used in forestry, land clearing, waste disposal, and post-storm clean-up. Compared with traditional chain saws, its most significant feature is the provision of...
Send Inquiry
Product Introduction

Products Overview

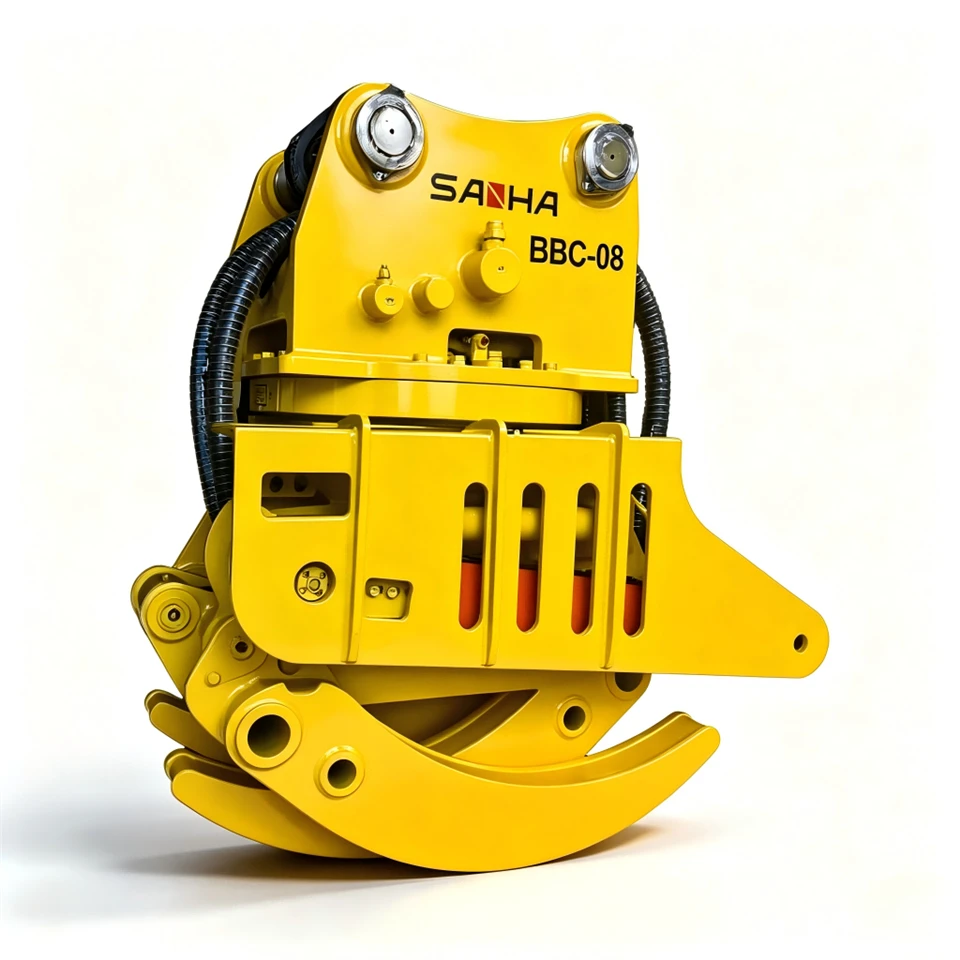

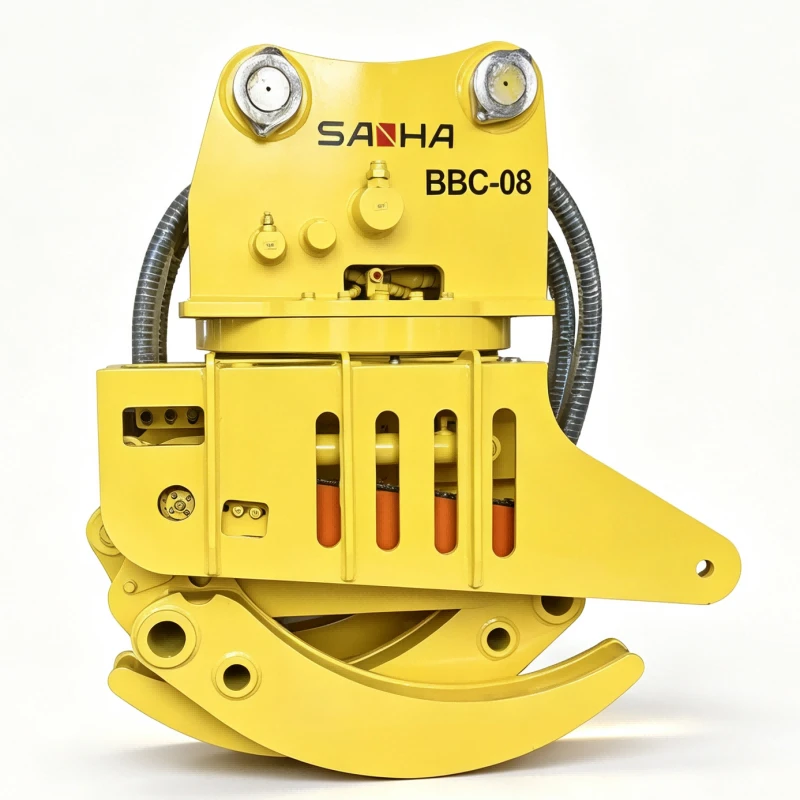

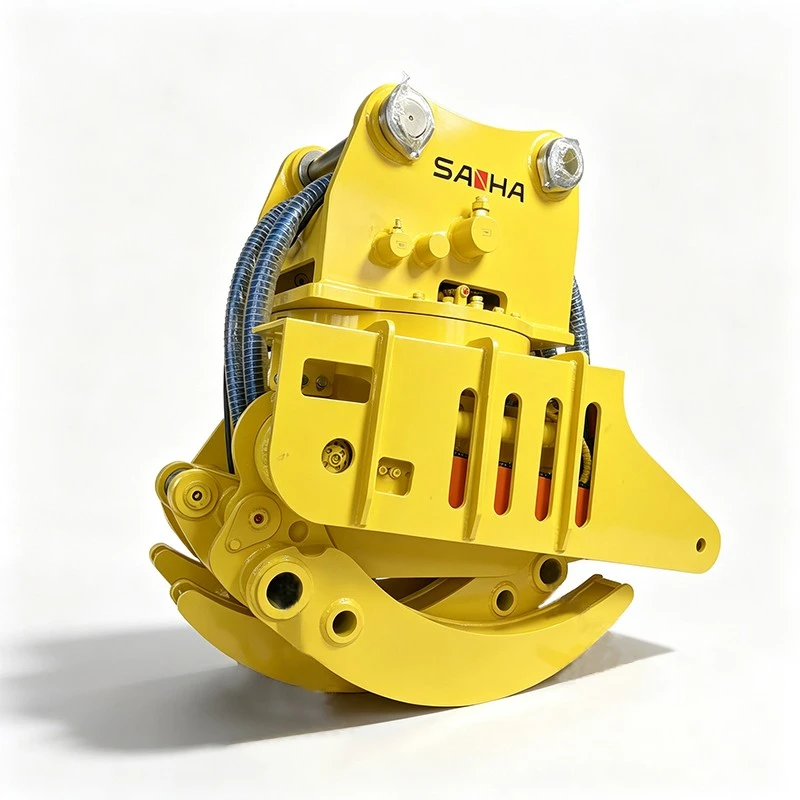

Multifunctional Grapple Saw

The Multifunctional Grapple Saw is an attachment that integrates cutting and clamping functions. It is mainly used in forestry, land clearing, waste disposal, and post-storm clean-up. Compared with traditional chain saws, its most significant feature is the provision of adjustable mechanical clamping arms, which can firmly fix the tree trunk at the moment of sawing, preventing it from rolling or slipping. This design significantly reduces the risk of manual grasping, and is particularly suitable for operations on slopes or in dense forest areas.

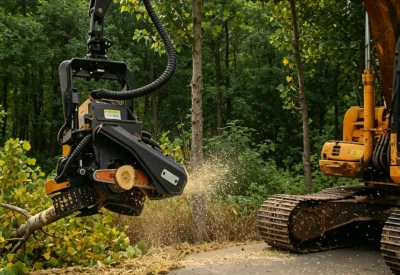

Highlighting advantages and application scenarios



Enhanced Safety: The clamping device can automatically lock the wood, preventing the tree from tipping over and injuring the operator during traditional logging. According to the International Forestry Safety Association, the accident rate in logging has decreased by approximately 40% after using the clamping saw.

Efficiency Optimization: A single operation can complete both cutting and preparation for transportation, saving manpower. For example, when clearing trees broken by storms, the clamping saw can quickly move the wood to the transport vehicle.

Suitable for Complex Environments: In narrow spaces or steep terrain, traditional tools require multiple people to cooperate, while the  Multifunctional Grapple Saw can be operated by a single person.

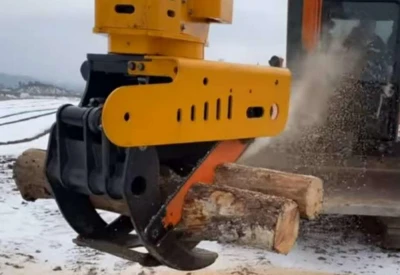

Multifunctional Grapple Saw



Key selection parameters and maintenance tips

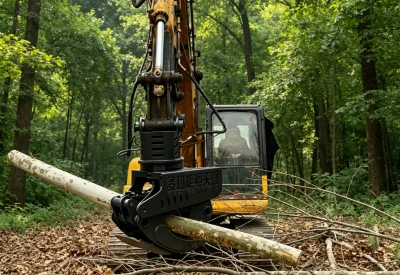

Multifunctional Grapple Saw



Users should choose the following core indicators based on their actual needs:

Power type: The power of the fuel model is usually 2.5 - 5 horsepower, suitable for outdoor environments without electricity; the electric model has low noise but relies on power supply.

Clamping range: Common models are suitable for tree trunks with diameters ranging from 15 to 50 centimeters. For ranges beyond this, customization is required.

Chain speed: Efficient models can reach 20 meters per second, but they require more frequent chain lubrication .









Technical Specification



Item/Model

Suitable excavator

Rotating pressure

Rotating flow

Working pressure

Working flow

Max jaw opening

Overall height

length

Overall width

Weight

UNIT

Ton

bar

L/min

bar

L/min

mm

Amm

Bmm

Cmm

kg

DC-04

5-7

120

40

200

60-120

1000

1100

950

700

450

DC-06

7-15

120

90

350

90-120

1050

1150

1000

800

710

DC-08

15-25

120

90

350

120-140

1350

1400

1150

1050

1100
