Hydraulic Concrete Pulverizer for Excavator
video

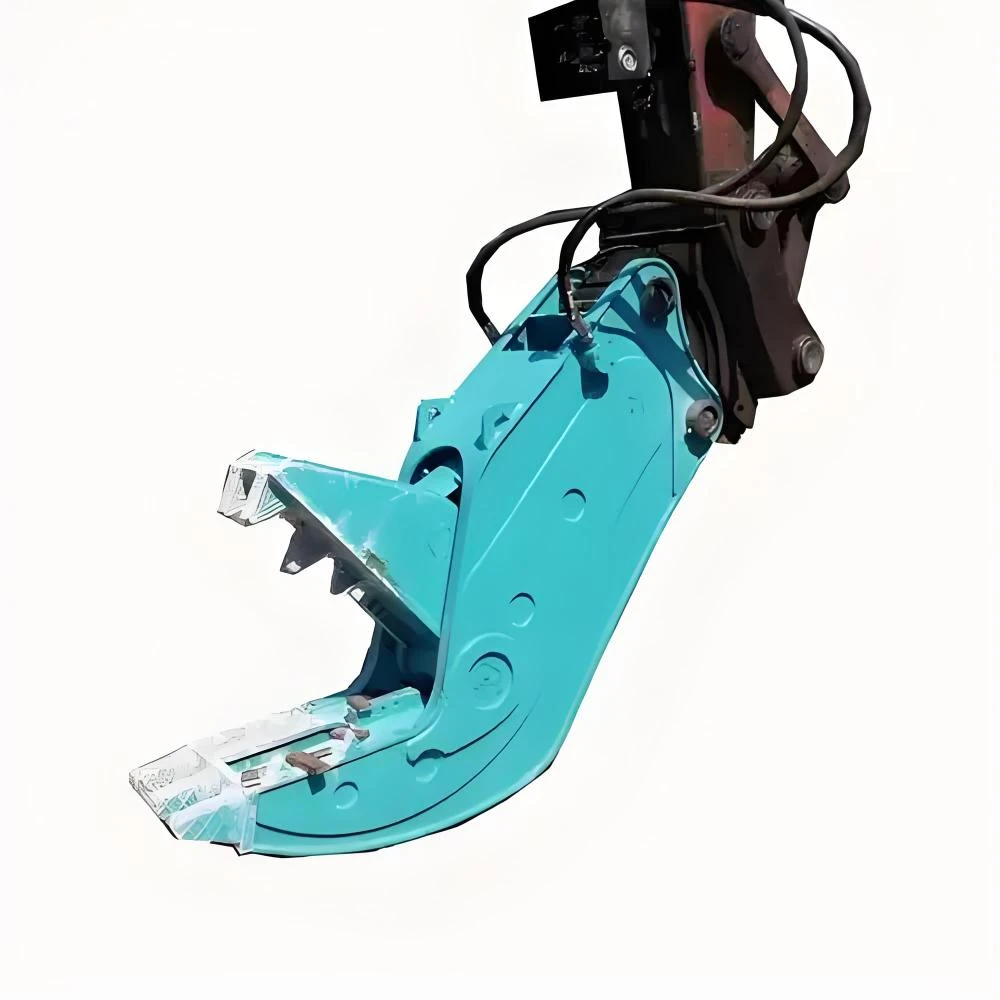

Hydraulic Concrete Pulverizer for Excavator

The Hydraulic Concrete Pulverizer for Excavator is a high-performance crushing attachment driven by a hydraulic system, designed for efficient crushing operations. Manufactured from high-strength alloy steel, it boasts exceptional impact resistance and wear resistance. It can be directly installed on the arm end of an excavator, utilizing the excavator’s hydraulic system for power supply. This hydraulic concrete pulverizer is widely used in scenarios such as building demolition, mine crushing, and road construction.
Send Inquiry
Product Introduction

Product Overview



The Hydraulic Concrete Pulverizer for Excavator is a high-performance crushing attachment driven by a hydraulic system, designed for efficient crushing operations. Manufactured from high-strength alloy steel, it boasts exceptional impact resistance and wear resistance. It can be directly installed on the arm end of an excavator, utilizing the excavator's hydraulic system for power supply. This hydraulic concrete pulverizer is widely used in scenarios such as building demolition, mine crushing, and road construction.



1



Main features



● The most prominent feature of the hydraulic pulverizer is its strong crushing power, which can generally reach 100-500 tons.

● High-quality products adopt a special heat treatment process, making the jaw surface hardness reach HRC58-62, with excellent wear resistance.

● Another notable feature is its strong adaptability. By replacing different-sized jaw surfaces, it can meet various operation requirements ranging from light demolition to heavy crushing.

● The rotating hydraulic pulverizer also comes equipped with a 360-degree rotation function, significantly enhancing operational flexibility.

2
3

Applications



● Building demolition is the primary application scenario for it, accounting for approximately 60% of their total usage. In the demolition of high-rise buildings, it can efficiently crush concrete beams, columns, and floor slabs, significantly enhancing the project efficiency.

● Mining extraction accounts for approximately 20% of the applications, mainly used for secondary crushing of large chunks of ore. Additionally, it is widely used in fields such as road construction, bridge demolition, and port engineering. It is particularly suitable for precise crushing operations in restricted spaces.

4

Technical Specifications



Fixed Hydraulic Pulverizer

Item/Model

Unit

DC-02

DC-04

DC-06

DC-08

DC-10

Lengh A

mm

1032

1344

1723

2090

3210

Max Open

mm

420

600

750

860

1100

Cutter Length

mm

75

95

112

180

360

Central Crushing Force

kn

260

560

840

1170

1600

Crushing Force

kn

170

350

520

700

1000

Working Pressure

bar

24

24

31

32

32

Oil Flow

lpm

80-120

100-140

120-180

180-250

200-300

Suitable Excavator

ton

4-6

6-9

10-15

15-25

30-36

Weight

kg

310

510

1000

1700

2700



Rotatable Hydraulic Pulverizer

Item/Model

Unit

DC-04

DC-06

DC-08

DC-08S

Weight

kg

600

1450

2000

2700

Max Open

mm

520

700

780

880

Cutting Force(B)

ton

76

185

220

300

Crushing Force(A)

ton

32

60

70

100

Working Pressure

bar

350

350

350

350

Cutter Length

mm

140

180

220

260

Max.Rotation Flow

lpm

28

28

28

28

Open/Close

S

1.8/2.5

1.5/3

2/3

2/3

Suitable Excavator

ton

6-9

10-15

18-22

23-36
